Timber design

An extension has been implemented that allows analysis of rectangular and circular timber beams, as well as glued and composite sections of timber structures according to DBN V.2.6-161:2017, EN 1995-1-1:2004/AC:2009 (release R2).

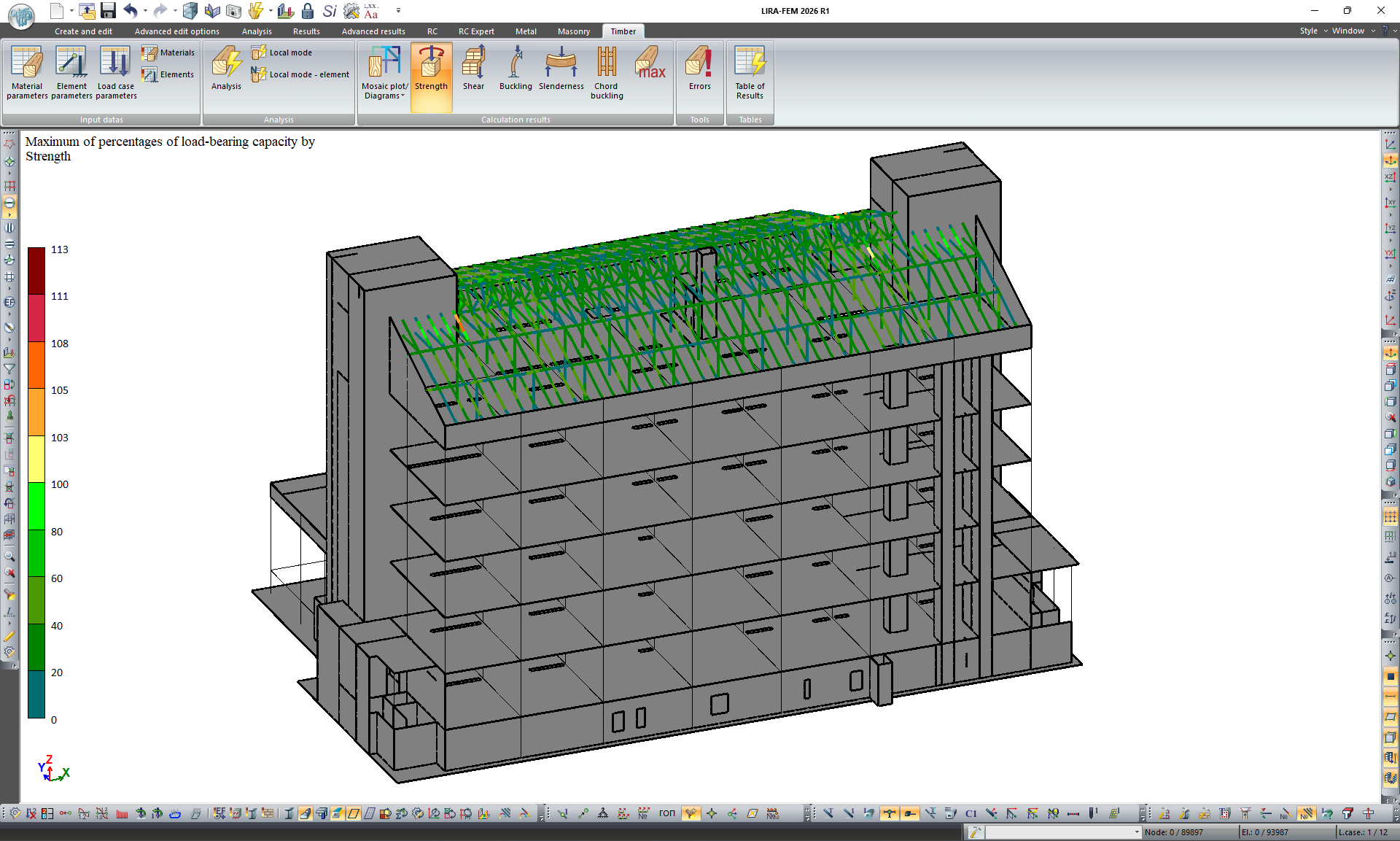

The tool is intended for design verification of elements — beams, columns, and trusses — at the post-processing stage of finite element analysis results. Checks are performed for axial tension and compression, bending, splitting, eccentric compression and tension, stability under axial compression, and stability of planar bending form. Results are clearly presented in graphical and tabular form with utilization percentages for each check.
