Calculation of settlement to check the serviceability and determine the design resistance for foundations according to EN 1997-1:2004. Vertical soil stresses σz at depth z are calculated based on the Boussinesq approach and the superposition principle.

The natural pressure diagram is clarified in the case when the cushion is a load and the cushion is above the relief level.

A new algorithm is implemented for calculating settlement and stress values at a specified point of the soil model, without the need to perform a complete analysis.

New option to assign the order of boreholes in the list of boreholes.

For boreholes, it is possible to define a borehole legend (designation).

To estimate the initial expenses and volume of excavation operations, new mosaic plots for the weight and volume of excavated soil were created.

New table that displays load parameters (volume, area, weight of excavated soil, and average load value).

New flag of drawing Triangulation mesh for generation of contour plots.

A mosaic plot for groups and subgroups of loads is added to check the input data.

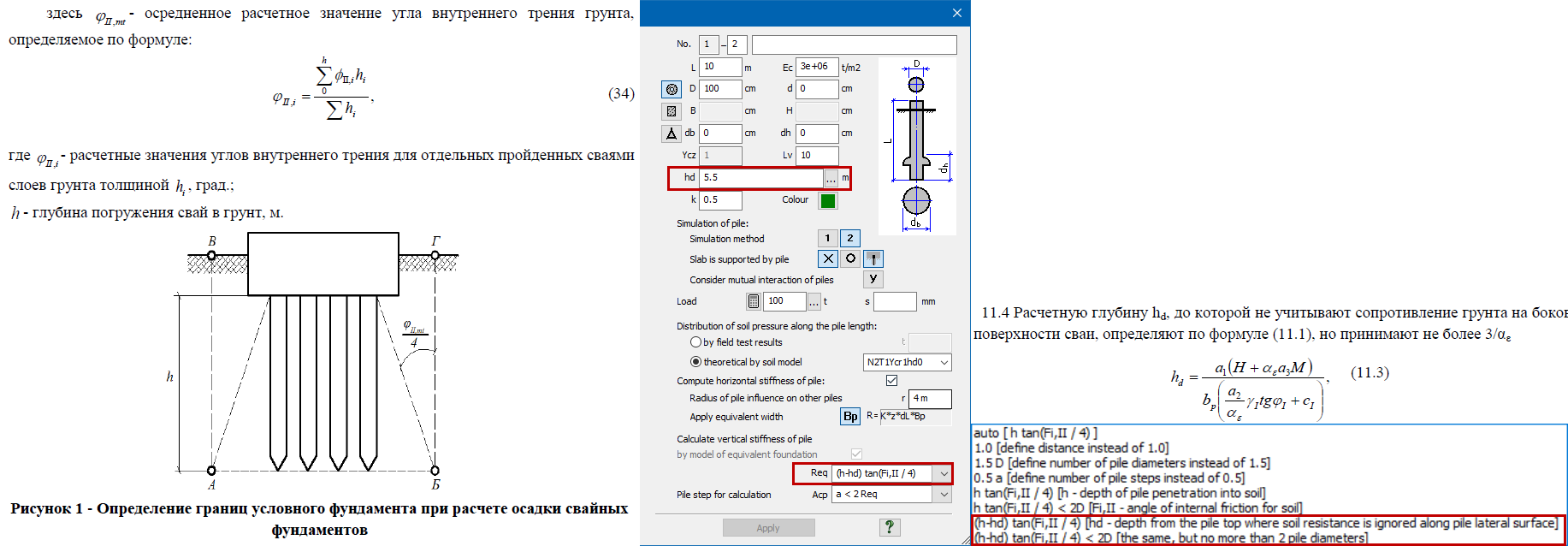

• New options for generating Equivalent Foundations for piles have been implemented: when calculating Req using the formula h*tg(θ_II/4), where h is the depth of pile penetration into the soil, the effect of the depth hd—at which the load-bearing capacity fi of the pile’s lateral surface is not taken into account—has been added. Moreover, if the parameter “h-hd” results in a value of Req less than 0.5D (half the pile’s diameter), then Req is set to 0.5D.

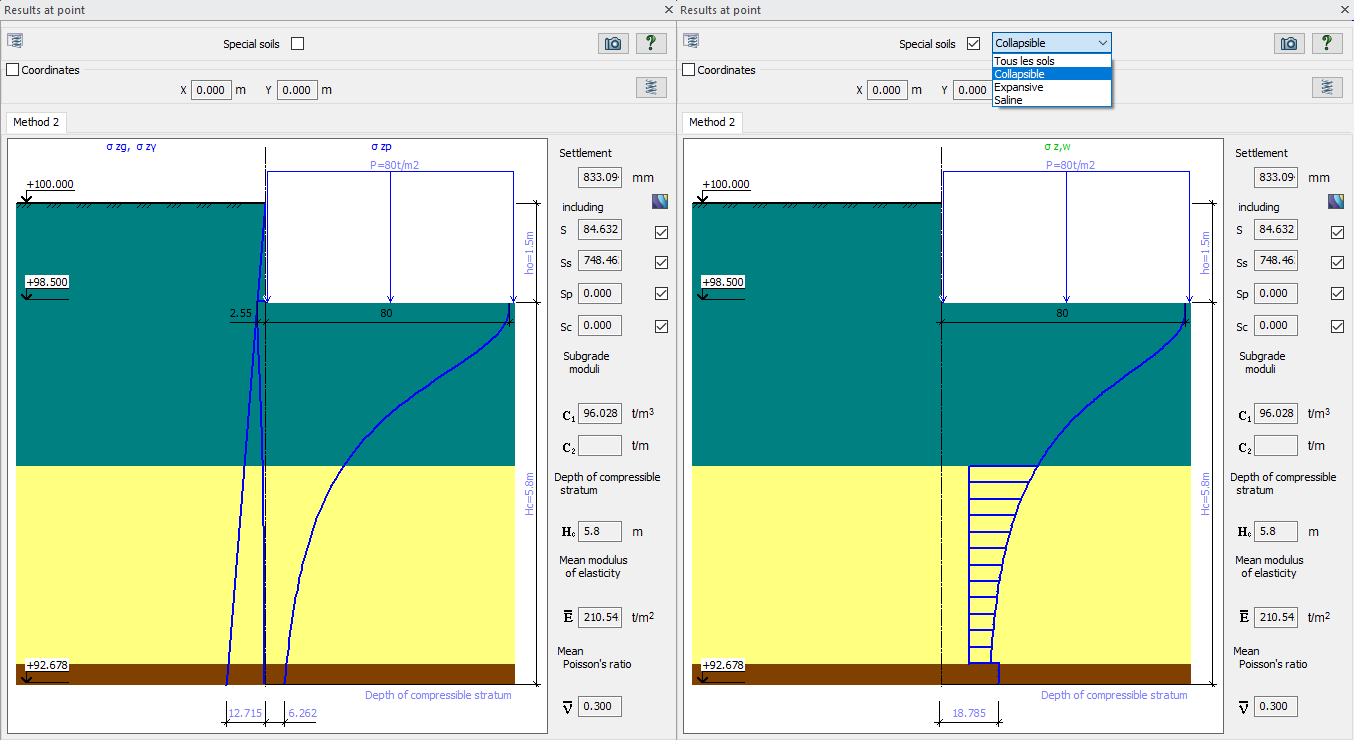

• In the "Results at a Point" dialog box, an option has been added to display calculation results for specific soils. This visualization allows for examining calculation details, serving as a partial trace of the computation. For example, for settlement soils, a hatched area of the full stress diagram S_z is shown, which contributed to the settlement calculation due to consolidation – clearly showing the initial settlement pressure and the extent to which the total stress S_z exceeds the initial settlement pressure layer by layer. Keep in mind that the total stress S_z includes the weight of the settlement soil with the buoyant effect of water taken into account, although in the original calculation without settlement the soil was treated as undrained (waterlogged). Thus, on the new diagram for calculating the specific soil under the foundation of the settlement layer, a jump in stresses is visible that is absent in the calculation without settlement.

• In the scale settings, an option has been added to display percentages in the scale ranges – indicating what fraction of the original data points and computation results fall within the given range.
• In the legend (textual accompaniment) for the calculation results (settlement and subgrade coefficients), the average value calculated from all load contours is now displayed.
