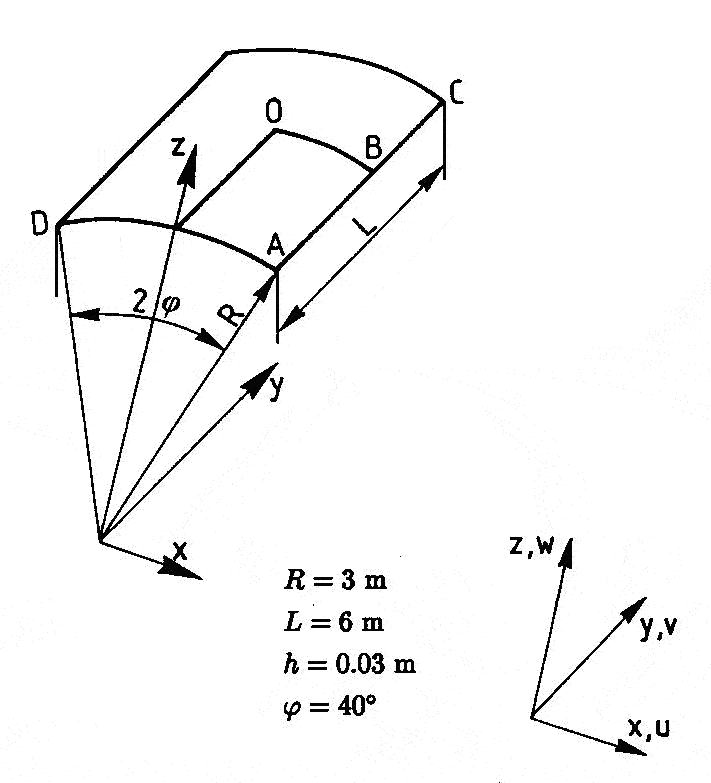

Òåñò 1.8 Cylindrical shell under its own weight
Verification of the LIRA-FEM software / Òåñò 1.8 Cylindrical shell under its own weight / Analytical solution: A.C. Scordelis et K.S. Lo, “Computer analysis of cylindrical shells”, J. Amer. Concr. Inst., 61, 1964.
Analytical solution: A.C. Scordelis et K.S. Lo, “Computer analysis of cylindrical shells”, J. Amer. Concr. Inst., 61, 1964.
Material characteristics: Å =3 õ 1011 Ïà, ν =0.0, y =2.083 x 105 kg/m3.
Boundary conditions: The AD arc is pinched.
Loads: Own weight.
CALCULATION RESULTS:
Point The desired value Analytical solution Calculation results (LIRA) Uncertainty,% Â wB, ì -3,70 x 10-2 -3,641 x 10-2 1,6
