Тест 1.5 Round plate
Verification of the LIRA-FEM software / Тест 1.5 Round plate / Analytical solution: S. Timoshenko, Résistance des matériaux, t. 2, Paris, Librairie Polytechnique Ch. Béranger, 1949.
Analytical solution: S. Timoshenko, Résistance des matériaux, t. 2, Paris, Librairie Polytechnique Ch. Béranger, 1949.

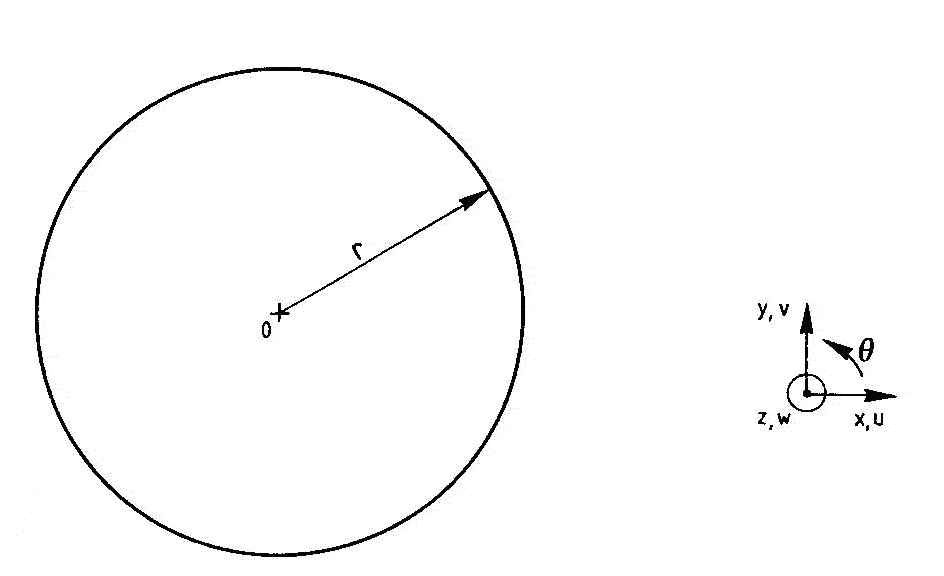

Geometry:
Radius r = 1 м Thickness h = 0.005 м. |
Material characteristics: Е = 2.1 х 1011 Па, ν = 0.3.
Boundary conditions: Stiff pinch on the outer edge (u=v=w=0; θX=θY=θZ=0).
Loads: Evenly distributed load over the area p= -1000 Па.
CALCULATION RESULTS:
Point |
The desired value |
Analytical solution |
Calculation results (LIRA) |
Uncertainty,% |
Center 0 |
Moving w0, м |
-0,0065 |
-0,00635 |
2,31 |
Preview image: Array
Note:
For the construction of the scheme used KE 11 (lamellar KE).
Number of nodes:1111.
Number of elements:1000.
