Тест 1.4 Rectangular plate
Verification of the LIRA-FEM software / Тест 1.4 Rectangular plate / Analytical solution: S. Timoshenko, Résistance des matériaux, t. 1, Paris, Librairie Polytechnique Ch. Béranger, 1949.
Analytical solution: S. Timoshenko, Résistance des matériaux, t. 1, Paris, Librairie Polytechnique Ch. Béranger, 1949.

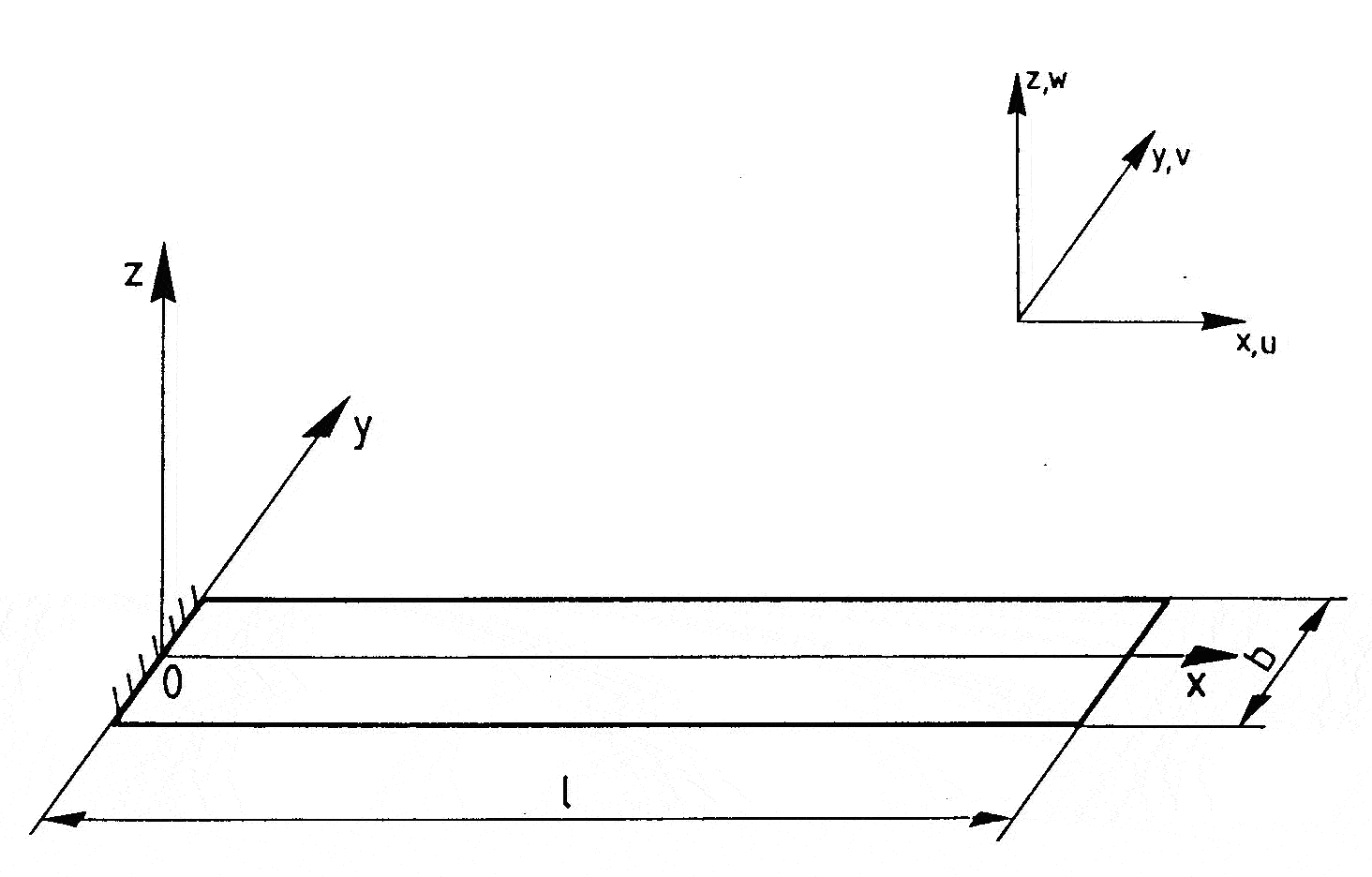

Geometry:
Thickness h = 0.005 м;
Length l = 1 м;
Width b = 0.1 м.
Material characteristics: Е = 2.1 x 1011 Па, ν = 0.3.
Boundary conditions: The contour along the line x = 0 is rigidly pinched.
Loads: Distributed load over the area: p = 1700 Па.
CALCULATION RESULTS:
Point The desired value Analytical solution Calculation results (LIRA) Uncertainty,% x = 1 Vertical Movement м -0,0973 -0,09583 1,51
