Test 1.2 Flat Truss
Verification of the LIRA-FEM software / Test 1.2 Flat Truss / Analytical solution: M. Laredo, Résistance des matériaux, Paris, Dunod, 1970, p. 579.
Analytical solution: M. Laredo, Résistance des matériaux, Paris, Dunod, 1970, p. 579.

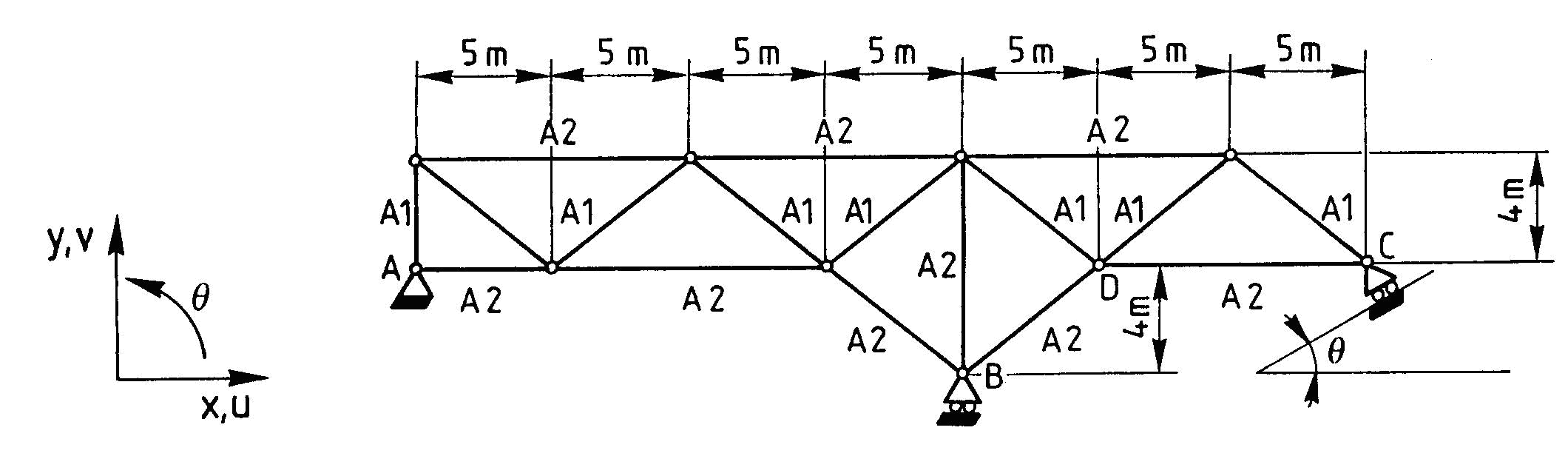

Geometry:
Q=300; А1=1.41 x 10-3 м2; А2=2.82 x 10-3 м2.
Material characteristics: Isotropic elastic, Е=2.1 х 1011 Pa, coefficient of thermal expansion
Boundary conditions: uA=vA = 0; vB = vl c = 0.

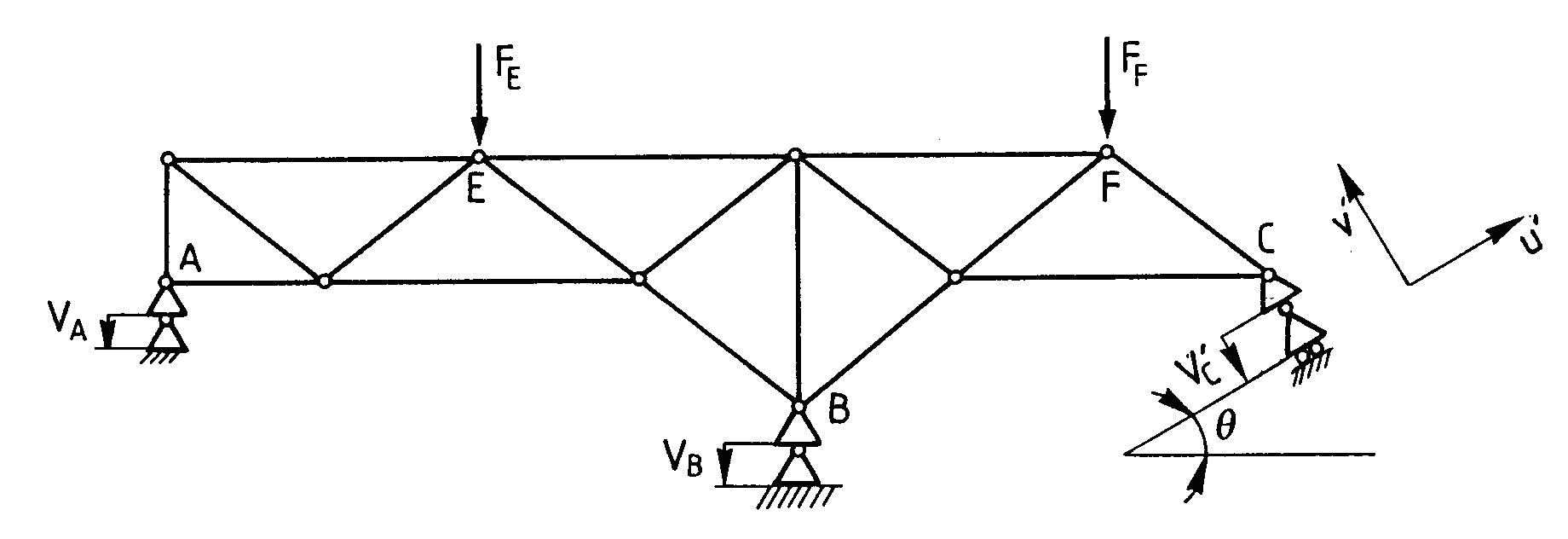

Loads:
vA = -0.02 м; vВ = -0.03 м; v = -0.015 м.
FE = -150 кН; FF = -100кН.
All rods are heated to temperature 1500С.
CALCULATION RESULTS:
Point |
The desired value |
Analytic solution |
Calculation results (LYRA) |
Infelicity,% |
BD |
Longitudinal force, Н |
43633 |
43633 |
0 |
D |
Relocation vD, м |
-0,01618 |
-0,01618 |
0 |
