Test 1.1 Space frame with elastic supports
Verification of the LIRA-FEM software / Test 1.1 Space frame with elastic supports / Analytical solution: M. Laredo,Sistance des matriaux, Paris, Dunod, 1970, p. 165.
Analytical solution: M. Laredo, sistance des matriaux, Paris, Dunod, 1970, p. 165.

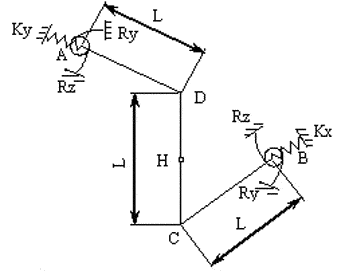

Geometry:L = 2 m;
Iy = Ix = I = 10-6 m4;
J = 2.0 x 10-6 m4;
A = 0.001 m2.
Material characteristic: Isotropic elastic, E=2.1 С… 1011 Pa, G=7.875 x 1010 Pa.
Boundary conditions:
At point A: y=0, uA=wA=0; РСѓ=52500 N/m (compressive-tensile stiffness);
Rx=Rz=52500 Nm/rad (torsional stiffness).
At point B: X=0, vB=wB=0; РС…=52500 N/m (compressive-tensile stiffness);
Ry=Rz=52500 Nm/rad (torsional stiffness).
At point H: the hinge.
Loads:
F = -10000 Рќ. |
CALCULATION RESULTS:
Point |
Desired value |
Analytical solution |
Calculation results (LIRA) |
Accuracy,% |
A |
Moment РњС…, Nm |
-8437,5 |
-8437,6 |
0,001 |
A |
Moment РњСѓ, Nm |
-1562,5 |
-1562,4 |
0,006 |
A |
Moment Рњz, Nm |
3125,0 |
3124,8 |
0,006 |
B |
Moment РњС…, Nm |
1562,5 |
1562,4 |
0,006 |
B |
Moment РњСѓ, Nm |
8437,5 |
8437,6 |
0,001 |
B |
Moment Рњz, Nm |
3125,0 |
3124,8 |
0,006 |
A |
Moving vA, m |
-0,029762 |
-0,02976 |
0,006 |
A |
Turning angle ОёAX, rad |
0,16071 |
0,16071 |
0 |
D |
Moving wD, Рј |
-0,37004 |
-0,37004 |
0 |
