Annotion lines always capture the bottom of the column

Liraland 2024.In this tutorial video=>,when drawing Line in Annotation, the line node is at the top of the columnBut when I was drawing it, it always capture the bottom of the column even if my mouse arrow is near the top of the column

RSS

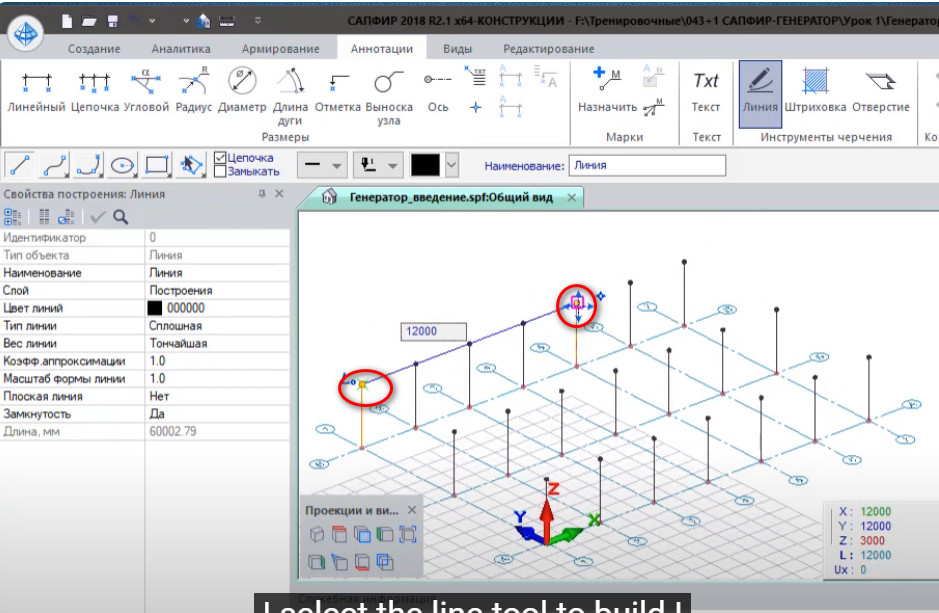

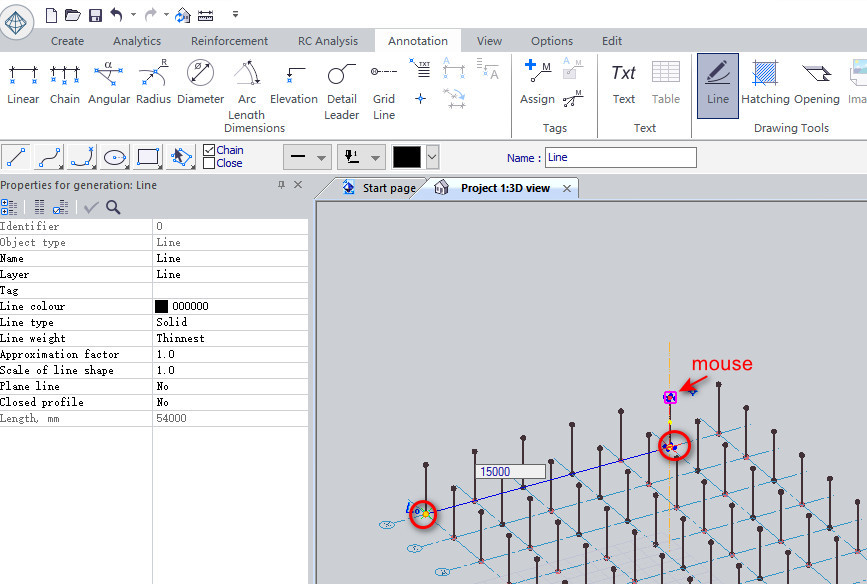

netsonicyxf Visitor Posts: 7 Points: 6 Joined: Dec 31, 2024	#1 People who like this:0 Yes/0 No Mar 14, 2025 03:08:29 Liraland 2024. In this tutorial video=>https://www.youtube.com/watch?v=G7Oqsk5YAFc&list=PLc1zDNPZWhj_DCHOG4yCyhPqVAmQZSzsN&index=2, when drawing Line in Annotation, the line node is at the top of the column But when I was drawing it, it always capture the bottom of the column even if my mouse arrow is near the top of the column

alekstish Administrator Posts: 603 Points: 1062 Joined: May 13, 2010	#2 People who like this:1 Yes/0 No Mar 15, 2025 20:01:55 Hello, Try disabling the locator level lock while building the model. Best regards Alexey Tishchenko LIRA-FEM Technical Support Team Attached Files Pic1.png (294.61 Kb) Edited: alekstish - Mar 17, 2025 10:27:36
