The Generator in LiraAD doesn't create surface load

#1
People who like this:0Yes/0No
Feb 20, 2025 04:00:29
LiraLand ËÈÐÀ-ÑÀÏÐ + ÑÀÏÔÈÐ 2024 R2.3

I open the official example "Load_S,Load_L.spf" from LIRA-CAD help (Ribbon User Interface - Ribbon tab: Create - Generator - Example)

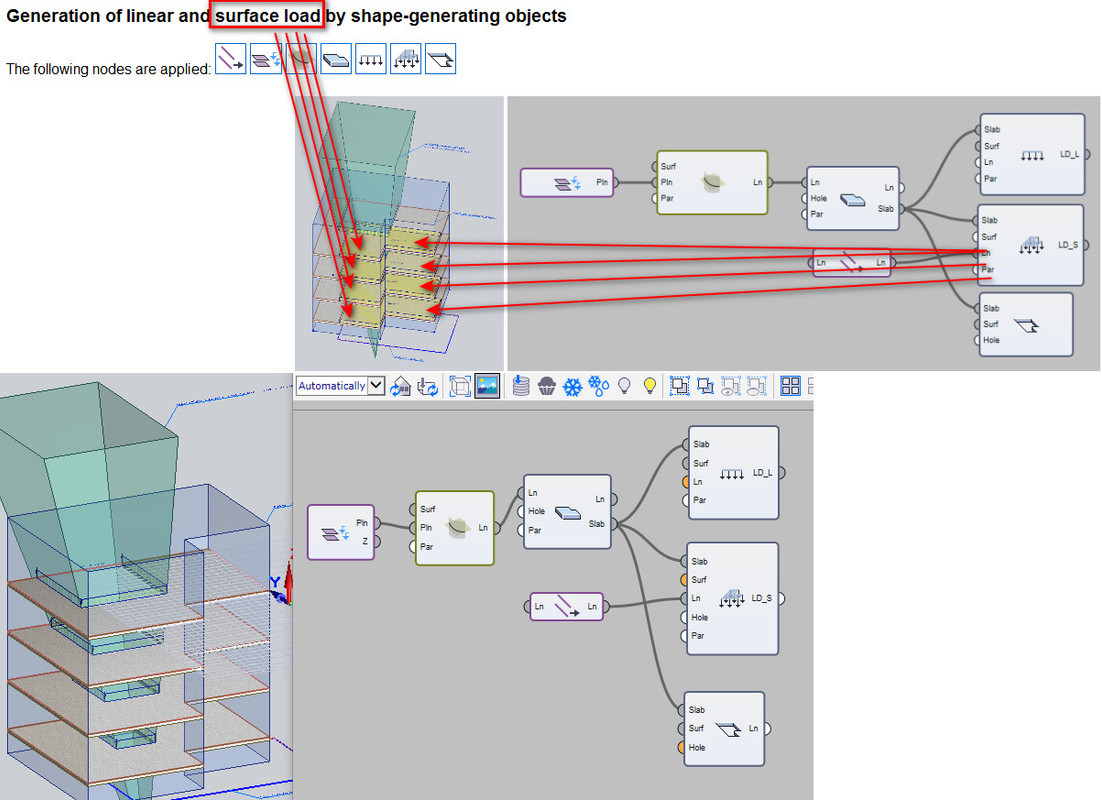

The attached top image shows surface load in the help file image. But there is no surface load in the model ("Load_S,Load_L.spf" ) as shown in the bottom image.



#2
People who like this:1Yes/0No
Feb 20, 2025 16:09:35
Quote
wrote:
But there is no surface load in the model ("Load_S,Load_L.spf" ) as shown in the bottom image.

Good day,netsonicyxf,

You need to select the “Load_S” node and specify “Yes” for the parameter “Multi copy by storeys” in dialog box Properties. In “Storeys” property you can choose the exact stories, which need load copy.
